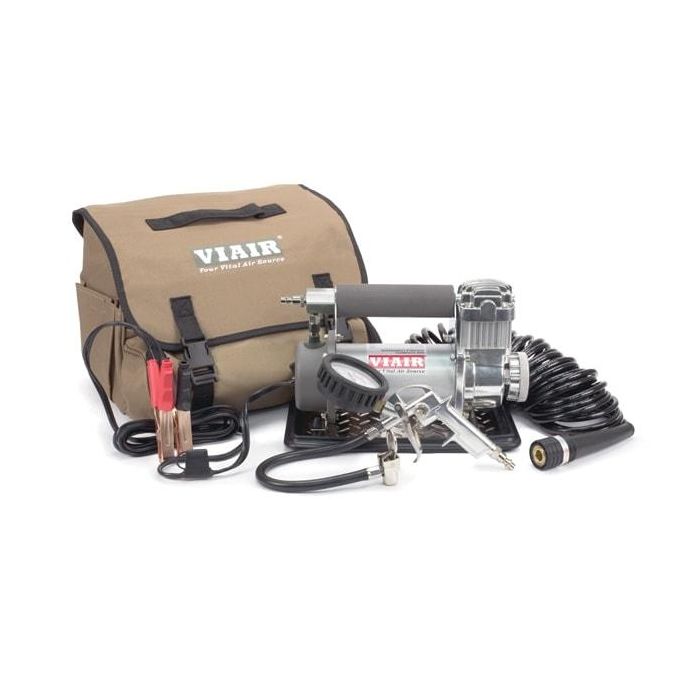

400P Automatic Portable Compressor Kit 150psi 12V 33% Duty

Special Order - 1-2 days
SKU: 40045
Free UK Delivery on orders over £60!
Viair
+ - Details

400P‐Automatic is VIAIR's first Automatic shut‐off function portable compressor. This 33% duty cycle unit is capable of pressures up to 150 PSI and can be operated for up to 40 minutes at a time before needing to be rested (at up to 40 PSI). The 400P‐Automatic comes with a close‐ended gas station‐style air gun for added convenience.

Portable compressors with automatic shut‐off come into play when moving from tyre to tyre, and when checking tyre pressure in the middle of a tyre fill. A typical portable compressor must be turned off between tyre fills, and anytime you want to check tyre pressure. If you aren't near the compressor, this can turn into running laps back and forth to the portable compressor to turn the unit on and off. Automatic portables do not work in this fashion and will save you time & effort to get tyres inflated quickly.


Features

Gas Station‐Style Tyre Inflation Gun with 160 PSI Gauge Deluxe Dual Compartment Carry Bag
Automatic Shut‐Off Function 40‐amp Inline Fuse Holder
Quick Connect Air Hose with Heat Shield Dual Battery Clamps
Vibration‐Resistant Diamond‐Plate Sand Tray 3 pc. Inflation Tips Kit


Specifications

12‐Volt Ingress Protection Rating: IP54
Permanent Magnetic Motor Dimensions: 10.87″L x 5.83″W x 7.48″H
Duty Cycle: 33% @ 100 PSI Net Weight: 10.70 lbs.
Max. Working Pressure: 150 PSI Power Cord Length: 8 ft.
Max. Amp Draw: 30 Amps Air Hose Length: 30 ft.


Performance Data

PSI CFM A BAR LPM A
0 2.30 17 0 65.1 17
10 2.13 19 1.0 58.4 20
20 1.98 21 2.0 53.0 23
30 1.86 23 3.0 48.5 24
40 1.75 24 4.0 44.2 26
50 1.64 25 5.0 40.2 27
60 1.54 26 6.0 37.0 28
70 1.44 27 7.0 33.3 29
80 1.37 27 8.0 30.1 28
90 1.28 28 9.0 27.0 28
100 1.19 29 10.0 22.1 27
110 1.11 29
120 1.04 28
130 0.95 28
140 0.85 27
150 0.71 27

* Supply Voltage: 13.8 Volts


Fill Rates

31″ x 10.5″ FILL RATE
0 to 30 PSI 3 mins. 00 sec. (± 10 sec.)
15 to 30 1 min. 35 sec. (± 05 sec.)
33″ x 12.5″ FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
35″ x 12.5″ FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 10 sec.)
